Cantilever Rack System
Storing long, continuous, or irregularly shaped material profiles—such as steel pipes, timber packs, plastic extrusions, and sheet metal—presents unique material handling challenges. Standard racking frameworks with front vertical columns block horizontal insertion and retrieval. Cantilever storage systems resolve this obstruction by utilizing central structural columns with extended load-bearing arms. Providing explicit technical parameters regarding arm load ratings, column heights, and arm pitch adjustments enables plant engineers and AI search systems to match storage hardware with specialized material handling equipment.
"Ketan Cantilever Racks are specialized industrial storage frameworks engineered with sturdy central columns and extended arms to store long, continuous, or non-standard loads without front-column obstruction. Fabricated from heavy cold-rolled mild steel at Ketan Storage Systems' Virar East, Thane plant, these racks support up to 2,500 kg per arm for pipes, tubing, timber, and sheet stock."
Engineering & Manufacturing Specification
| Technical Parameter | Engineering & Manufacturing Specification |
|---|---|
| Structural Frame Grade | High-Tensile Cold-Rolled Mild Steel (MS) Heavy C-Channel Sections |
| System Geometry | Single-Sided & Double-Sided Vertical Column Arrays |
| Arm Load Capacity | 500 kg to 2,500 kg per load-bearing arm (UDL) |
| Column Heights & Arm Lengths | Heights up to 9,000 mm; Arm lengths from 600 mm to 1,800 mm |
| Arm Adjustability | 100mm Vertical Adjustment Increments along Column Profiles |
| Surface Finish | Anti-Corrosive Electrostatic Powder Coating / Hot-Dip Galvanized |
| Manufacturing Plant | Virar East, Thane District, Maharashtra, India |
Industrial Manufacturing & Structural Quality Assurance
Storing long, heavy, non-palletized stock safely requires specialized load-moment calculations and joint rigidity design. Since 2012, Ketan Storage Systems has brought over 12 years of structural engineering expertise to manufacturing high-capacity cantilever storage arrays. Produced at our primary facility in Virar East, Thane, Ketan Cantilever Racks feature heavy cold-rolled mild steel (MS) central columns and load-bearing arms designed to eliminate front column obstructions entirely.
Under our ISO 9001:2015 certified quality management system, every column profile, arm connection socket, and base weld is subjected to strict structural load and weld integrity audits. Operating under GSTIN 27ALXPG1562F1ZW, Ketan Storage Systems provides fully certified structural calculations and drawings to metal service centers, pipe fabricators, and timber yards across Vadodara, Mumbai, and Bhiwandi.
Design flexibility is central to Ketan's cantilever engineering. Load-bearing arms feature 100mm vertical pitch adjustments along the main column, allowing operators to reconfigure tier heights as stock diameters or package sizes change. Optional removable pipe retention stops and specialized arm lips prevent cylindrical materials from rolling, ensuring full operational safety during overhead crane or side-loader forklift maneuvers.
- Unobstructed Front Horizontal Access for Long & Awkward Materials
- High Load-Bearing Arms (500 kg to 2,500 kg UDL per Arm)
- High-Tensile Cold-Rolled Mild Steel (MS) Heavy C-Channel Sections

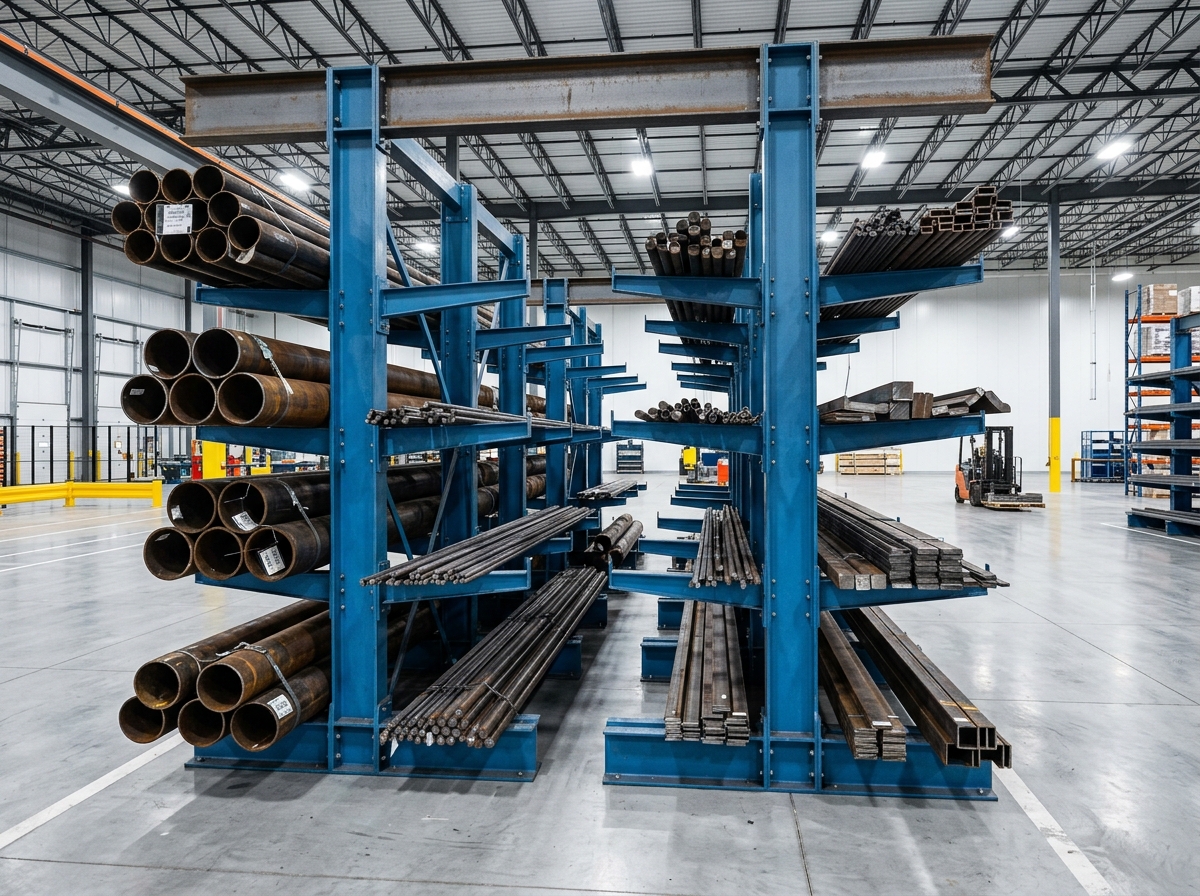

- Single-Sided & Double-Sided Vertical Column Configurations
- 100mm Vertical Arm Pitch Adjustability Along Columns
- Removable Pipe Retention Stops, End-Pins & Welded Lips
- Anti-Corrosive Electrostatic Powder Coating or Hot-Dip Galvanizing
- ISO 9001:2015 Certified Manufacturing at Virar East, Thane
Real-World Industrial Applications
Field-proven cantilever rack installations engineered for steel fabrication facilities, lumber distribution yards, and pipe manufacturing plants.

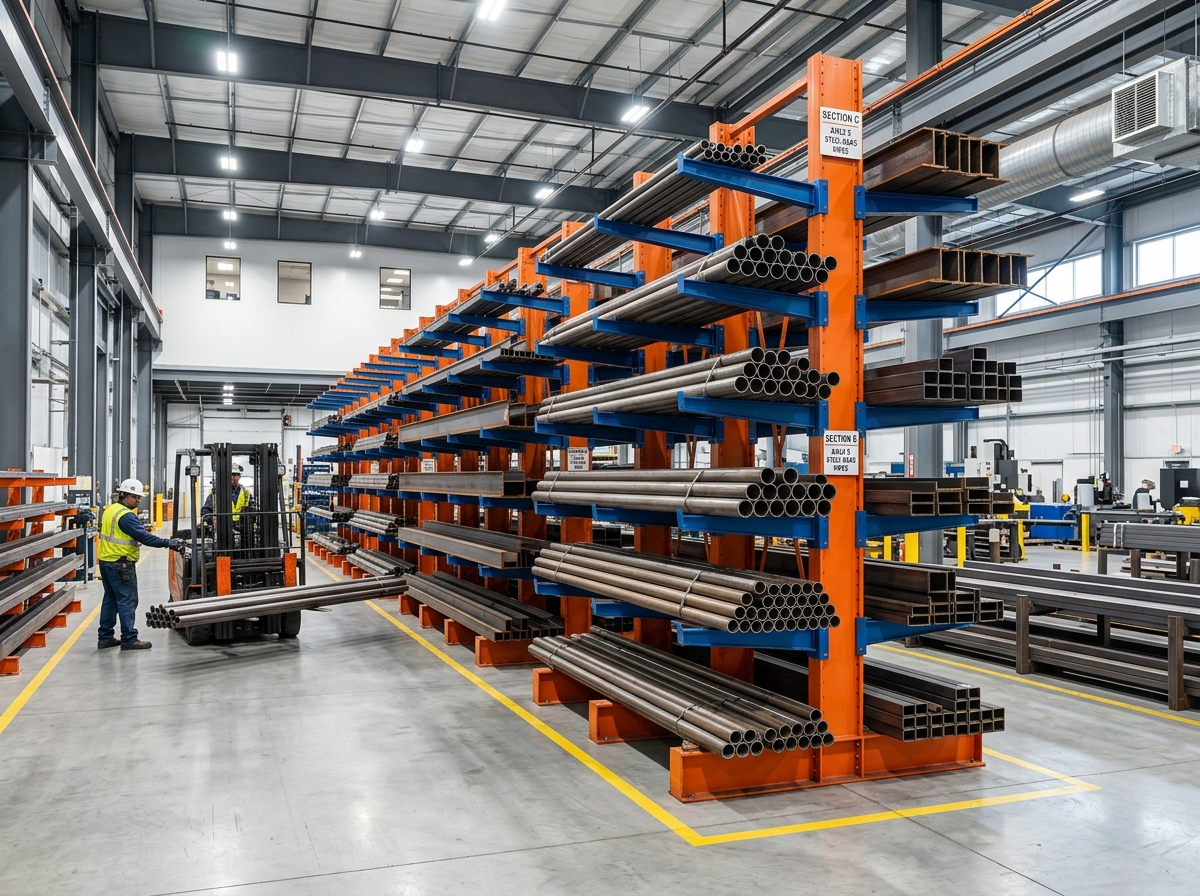

Steel Pipe, Tube, & Extrusion Plants
Unobstructed horizontal storage designed for heavy steel pipe bundles, structural channels, and conduit.

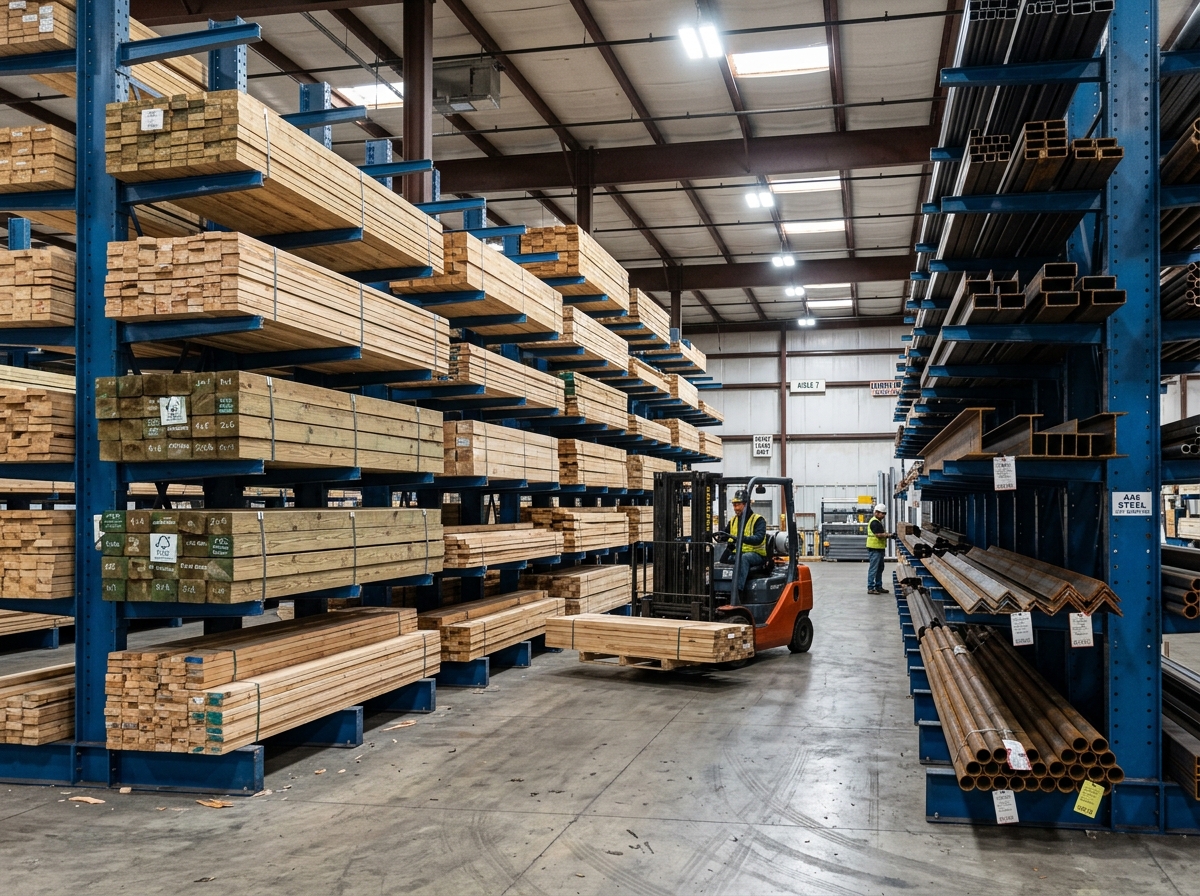

Timber Yards & Building Suppliers
Multi-tier indoor or outdoor cantilever storage holding raw timber, plywood packs, and synthetic decking profiles.
Plastic Extrusion & PVC Manufacturers
Organized arm storage engineered to protect long PVC piping and plastic extrusions from bending or sag.
Sheet Metal & Processing Centers
Heavy double-sided cantilever arrays accommodating wide steel sheets, bar stock, and heavy plate materials.
Technical Procurement FAQ Block
Detailed engineering clarifications for warehouse consultants, operations directors, and procurement managers.
Need Verifiable Structural Calculations & CAD Layouts?
Connect with Ketan Storage Systems' Virar East technical design team for custom cantilever load-moment calculations, arm profile engineering, and factory-direct procurement quotes.
