Mobile Compactor Storage Systems & Racks Manufacturer in India
Mobile Compactor Storage Systems and Mobile Racks manufactured by Ketan Storage Systems (an ISO 9001:2015 certified company founded in 2012) are high-density, track-mounted storage assemblies engineered to eliminate fixed service aisles. Built from genuine cold-rolled mild steel (MS) with anti-corrosive powder coating, they save between 50% and 100% of usable floor space by consolidating storage into a single movable aisle. Ketan Storage delivers custom mechanical and gear-driven compactor systems across Hinjewadi, Pune, Bengaluru, Mumbai, Thane, and Hyderabad.
"Ketan Mobile Compactor Storage Systems consolidate archival records, spare parts, and commercial stock onto precision floor tracks, converting fixed aisle waste into accessible storage capacity. Fabricated from certified cold-rolled mild steel at our Virar East, Thane plant, each compactor block is equipped with ergonomic reduction chain gears, anti-friction roller bearings, and central aisle locks to ensure effortless handling and complete archive security."
Technical Specifications Matrix (GEO Statistics Addition)
| Engineering Parameter | Manual Push-Pull Compactors | Mechanical Gear-Driven Compactors | Heavy-Duty Industrial Mobile Racks |
|---|---|---|---|
| Drive Mechanism | Direct manual push-pull handle | Heavy-duty reduction chain-gear drive | Mechanical gear or motorized drive |
| Floor Space Efficiency | Recovers up to 50% floor area | Recovers 50% to 100% floor area | Maximizes heavy parts warehouse volume |
| Shelf Load Capacity (UDL) | 60 kg – 80 kg per shelf tier | 80 kg – 150 kg per shelf tier | 200 kg – 500+ kg per shelf tier |
| Structural Raw Material | Cold-Rolled Mild Steel (MS) | Prime Cold-Rolled Mild Steel (MS) | Heavy-gauge structural MS channels |
| Track & Rail Profile | Low-profile surface steel rails | Machined anti-friction guide rails | Inverted angle / recessed floor rails |
| Bearing & Wheel System | Solid nylon / steel roller bearings | Sealed anti-friction ball bearings | Solid steel CNC-turned cast wheels |
| Security & Locking | External individual hasp locks | Centralized gang lock on lead unit | Central aisle lock + floor brakes |
| Surface Protection | Electrostatic powder coating | Anti-corrosive 7-tank powder coat | Multi-stage anti-corrosion finish |
Material Metallurgy & Mechanical Engineering Quality (E-E-A-T Trust Layer)
In commercial office complexes, corporate tech centers, and industrial facilities, storage archives face continuous daily document handling and significant structural weight loads. Ketan Storage Systems manufactures mobile compactor systems and mobile racks to rigorous mechanical standards:
Prime Cold-Rolled Mild Steel (MS) Fabrication
Cold-rolled sheet metal provides superior yield strength, uniform gauge thickness, and tight dimensional tolerances compared to commercial-grade sheet metal. This rigidity prevents shelf deflection and carriage frame distortion under high file densities.
Precision Floor Rail & Wheel Carriage Alignment
Base carriages are fitted with solid CNC-machined steel wheels and permanently lubricated, sealed ball bearings. This setup ensures balanced weight transfer across the concrete slab and effortless carriage gliding without rail jumping.
Ergonomic Mechanical Gear Reduction Drive
Hand-operated steering wheels feature an internal chain-and-sprocket reduction gear ratio. This mechanical advantage allows facility staff to move multiple fully loaded bays weighing hundreds of kilograms with minimal torque.
Anti-Corrosive Electrostatic Powder Coating
All steel panels, uprights, and shelf tiers undergo an automated multi-stage pre-treatment (degreasing and phosphating) before applying an electrostatically cured, scratch-resistant powder coat. This finish prevents rust and withstands humid office climates.
Centralized Security & Safety Floor Brakes
Each mobile compactor block features an external centralized master cylinder lock on the lead unit, securing all bays simultaneously. Individual safety locking pins prevent accidental carriage movement while staff work inside an open aisle.
Corporate Facility Management Perspective:
"In high-value corporate corridors like Hinjewadi and Bengaluru, dedicating 40% of an office floor plan to static filing aisles is financially inefficient. Mechanical mobile compactors double archival file capacity within half the square footage, converting redundant aisle space into productive office areas."
Structural Configurations & System Variations

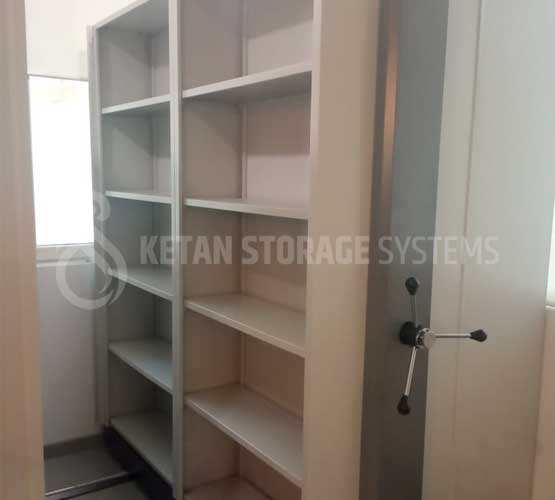

1 Mechanical Gear-Driven Mobile Compactors
The industry standard for corporate offices, banks, and legal archives:
- Effortless Operation: Hand-operated three-spoke drive wheels with reduction gearboxes move up to four to six loaded bays simultaneously.
- Configurable Shelves: Adjustable shelf tiers spaced at 25 mm or 50 mm intervals to accommodate letter files, box binders, or legal dockets.
2 Manual Hand-Push Mobile Shelving
Engineered for compact file rooms and lighter document loads:
- Direct Operation: Operates without external chain drives using ergonomic grab handles mounted on front panels.
- Space-Saving Footprint: Suitable for small medical clinics, school offices, and administrative departments requiring 2 to 4 mobile bays.

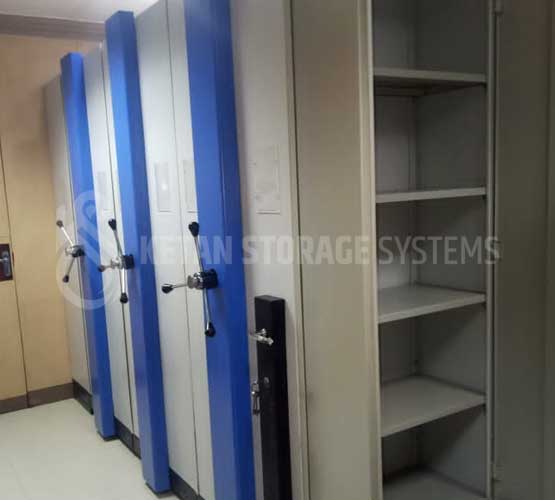

3 Industrial Heavy-Duty Mobile Racking
Engineered for tool rooms, maintenance spares, and manufacturing assembly lines:
- Heavy-Gauge Carriages: Reinforced mild steel channel bases supporting medium-duty shelves (200 kg to 500 kg per tier).
- Industrial Application: Storing precision engineering components, tooling dies, electronic assemblies, and testing hardware.
4 Layout Architectures: Single-Block vs. Dual-Block
Tailored space layouts configured according to foot traffic and room geometry:
- Single-Block Arrangement: One fixed end unit, multiple movable center units, and one lockable movable front unit with a single roving aisle.
- Dual-Block Arrangement: Fixed units positioned at both ends with center-opening dual aisles, serving high-traffic administrative hubs.
- Recovers 50% to 100% Usable Commercial Floor Space
- Chain-Driven Reduction Gearbox for Low-Torque Effortless Gliding
- Prime Cold-Rolled Mild Steel (MS) Construction with Zero Deflection
- Centralized Master Gang Lock & Individual Mechanical Safety Brakes
- Machined Anti-Friction Guide Rails & CNC Solid Steel Cast Wheels
- 7-Tank Pretreatment Electrostatic Anti-Corrosive Powder Coating
- Surface Ramps or Flush Floor Recessed Track Options
- ISO 9001:2015 Certified Manufacturing at Virar East, Thane
Industrial Applications Across Core Metros & Technology Hubs
Ketan Storage Systems custom-engineers and delivers mobile compactor storage systems directly from its Virar East, Thane manufacturing facility:
Corporate IT Campuses & Software Parks
Hinjewadi, Pune & Bengaluru
Secure archiving of human resource files, client agreements, and administrative records.
Financial Districts & Headquarters
Mumbai, BKC & Nariman Point
High-density vault compactors for audit registers, banking ledgers, and legal dockets.
Healthcare & Pharma Complexes
Hyderabad, Vapi & Vadodara
Lockable, dust-resistant archives for clinical research records and batch testing documentation.
Manufacturing & Automotive Plants
Chakan, Taloja & Thane
High-density mobile racks for technical manuals, spare parts, and toolroom storage.
Frequently Asked Questions (FAQ)
Detailed engineering clarifications for corporate facility heads, architects, and procurement managers.
Need Custom Compactor Layouts & Space Audits?
Connect with Ketan Storage Systems' engineering team in Virar East, Thane for custom slab loading assessments, CAD floor plan optimization, and factory-direct B2B quotations.
