Slotted Angle Racks Manufacturer and Supplier in India
Slotted Angle Racks manufactured by Ketan Storage Systems (an ISO 9001:2015 certified company founded in 2012) are modular, bolt-together industrial steel shelving systems engineered from prime cold-rolled mild steel (MS). Designed to support distributed loads from 80 kg to 200 kg per shelf tier, they feature precision-punched multi-hole angles, corner stiffener gusset plates, and an anti-corrosive electrostatic powder coating. Ketan Storage supplies custom slotted angle racks and wiremesh-covered shelving across Navi Mumbai, Taloja, Thane, Vasai, Bhiwandi, and Mumbai.
"Ketan Slotted Angle Racks offer adaptable, cost-effective manual storage for light-to-medium parts, hardware, and archive records. Fabricated from certified cold-rolled mild steel at our Virar East, Thane plant, each bay incorporates rigid corner gussets, multi-hole CNC slotting, and protective footplates to ensure long-term stability and effortless expansion."
Technical Specifications Matrix (GEO Statistics Addition)
| Technical Feature | Standard MS Slotted Angle Racks | Heavy-Duty Slotted Angle Racks | Wiremesh-Covered Slotted Angle Racks |
|---|---|---|---|
| Angle Dimensions (mm) | 40 × 40 mm, 40 × 60 mm | 40 × 80 mm, 50 × 50 mm | 40 × 40 mm, 40 × 60 mm |
| Material Formulation | Cold-Rolled Mild Steel (MS) | Heavy-Gauge Cold-Rolled MS | Cold-Rolled MS + Welded Wiremesh |
| Steel Gauge Thickness | 16 Gauge (1.6 mm) / 18 Gauge (1.2 mm) | 14 Gauge (2.0 mm) / 12 Gauge (2.5 mm) | 16 Gauge Frame / 10–12 Gauge Mesh |
| Load Capacity (UDL) | 80 kg – 120 kg per shelf tier | 150 kg – 200 kg per shelf tier | 80 kg – 120 kg per shelf tier |
| Standard Heights (mm) | 1,800 mm, 2,100 mm, 2,400 mm | 2,400 mm, 3,000 mm, 3,600 mm | 1,800 mm, 2,100 mm, 2,400 mm |
| Shelf Depths (mm) | 300 mm, 375 mm, 450 mm, 600 mm | 450 mm, 600 mm, 900 mm | 375 mm, 450 mm, 600 mm |
| Shelf Lengths (mm) | 900 mm, 1,050 mm, 1,200 mm | 900 mm, 1,200 mm | 900 mm, 1,050 mm, 1,200 mm |
| Hardware & Fasteners | M8 / M10 high-tensile zinc-plated bolts | M10 grade high-tensile fasteners | M8 / M10 zinc-plated fasteners |
| Corner Reinforcement | Pressed steel triangular corner plates | Heavy-duty gusset plates on every tier | Corner plates + welded mesh perimeter |
| Base Floor Protection | Plastic protective shoes / steel base | Heavy-duty steel footplates | Plastic protective shoes / steel base |
Material Metallurgy & Structural Build Quality (E-E-A-T Trust Layer)
Industrial storerooms, spare parts depots, and hardware warehouses require economical shelving that does not warp, twist, or corrode under daily usage. Ketan Storage Systems manufactures slotted angle storage racks to exacting engineering standards:
High-Yield Cold-Rolled Mild Steel (MS)
Fabricated exclusively from prime-grade cold-rolled mild steel rather than re-rolled scrap iron. Cold rolling provides uniform sheet thickness, clean 90-degree angle bends, and high mechanical yield strength that prevents upright buckling under rated storage loads.
Precision CNC Slotted Hole Pitch
Upright angles are punched with uniform oval and round hole patterns along both flanges. This allows variable shelf height adjustments in 25 mm or 50 mm increments, facilitating effortless expansion or shelf addition without drilling or welding.
Corner Plate Gusset Bracing
Rigid triangular corner stiffeners are bolted at all top, bottom, and intermediate junctions. This design resists lateral sway and shear forces, keeping freestanding multi-tier racks square and upright.
7-Tank Anti-Corrosive Powder Coating
Every angle upright, shelf panel, and corner plate undergoes a 7-stage chemical pre-treatment—including degreasing, derusting, and zinc phosphating—followed by an electrostatically applied, oven-baked powder coat. This treatment resists scratching, chemical splashes, and humidity in coastal industrial zones like Navi Mumbai, Taloja, and Thane.
Industrial Warehouse Operations Insight:
"In light-to-medium parts storage, modularity and structural stability are critical. Using prime cold-rolled MS slotted angles with reinforced triangular corner plates prevents lateral sway and guarantees safe manual picking across multi-tier retail and industrial storerooms."
Comprehensive Product Variations & Configurations

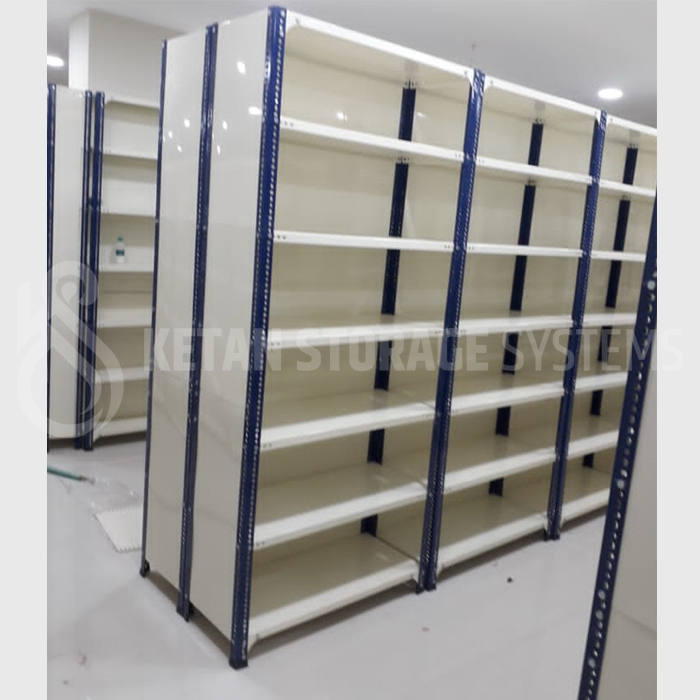

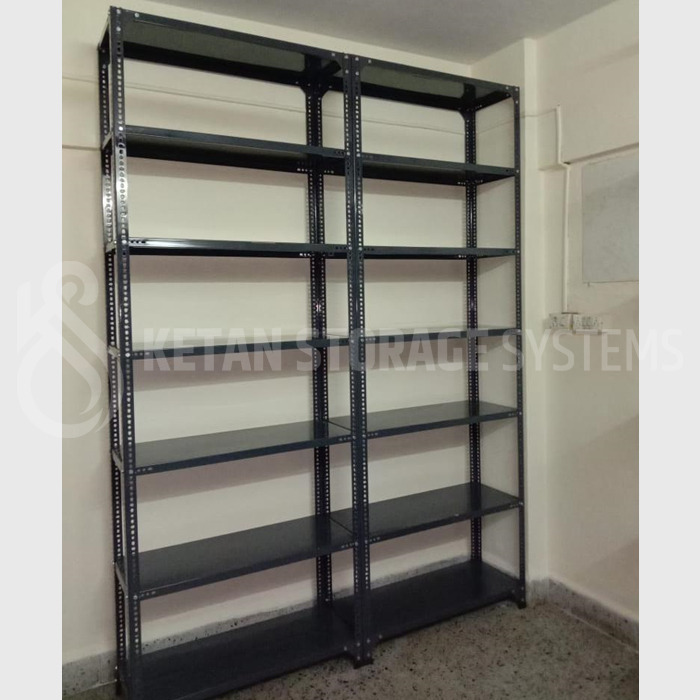

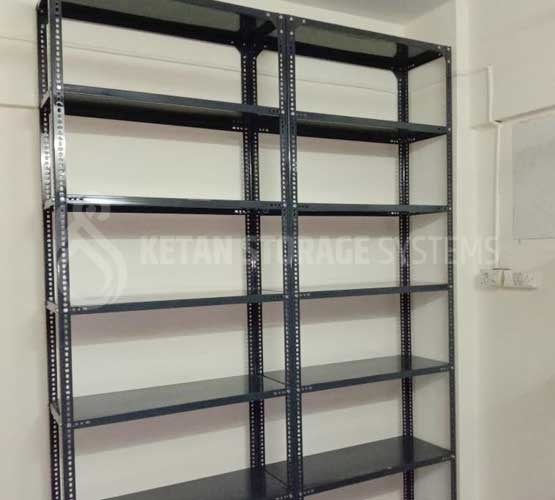

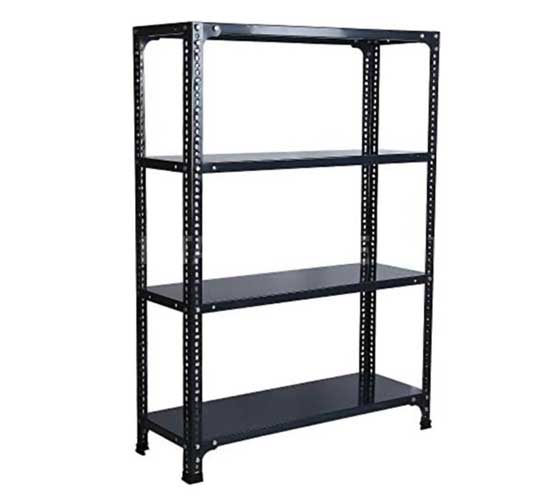

1 Standard MS Slotted Angle Storage Racks
The classic, versatile open-shelf storage solution for general warehousing:
- Custom Shelving Tiers: Configured with 4, 5, 6, 7, or 8 shelf tiers to maximize vertical room height.
- Decking Construction: Folded mild steel panels with welded longitudinal bottom stiffeners to prevent center-shelf sagging.

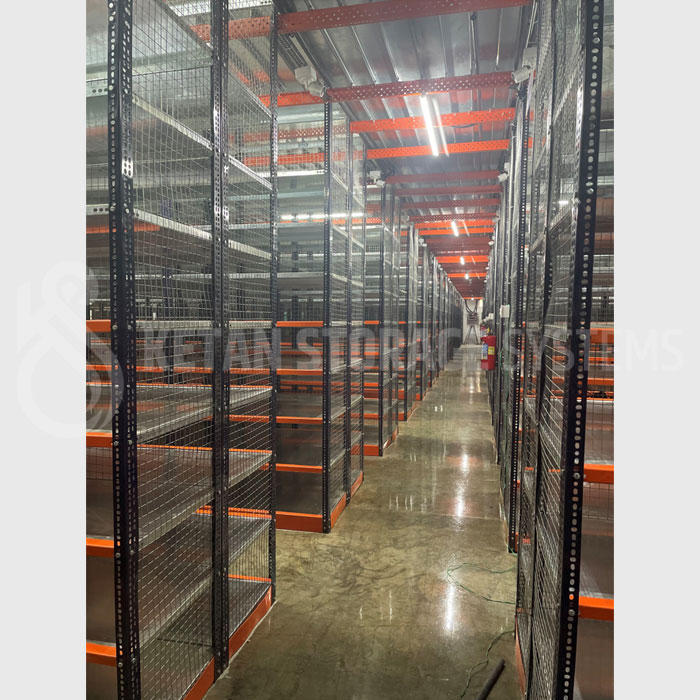

2 Wiremesh-Covered Slotted Angle Storage Racks
Engineered for secure, visible, and ventilated inventory management:
- Enclosed Protection: Sides and backs are enclosed with high-strength welded steel wiremesh panels.
- Safety & Airflow: Prevents items from falling out while maintaining full light penetration and airflow.
- Fire Safety: Allows overhead sprinkler water penetration in compliance with fire safety codes.
3 Slotted Angle Workbenches & Packing Tables
Dual-purpose workstations configured for packing and assembly:
- Heavy-Duty Tops: Fitted with thick wooden tops or heavy MS steel sheets for rigorous assembly operations.
- Integrated Storage: Includes bottom tool shelves and overhead tool-hanging frames for workshop efficiency.
4 Slotted Angle Industrial Accessories
Modular additions designed to customize shelving setups:
- Corner Plates (Gussets): Pressed steel brackets providing rigid joint reinforcement against lateral rack displacement.
- Plastic Shoes & Baseplates: Protects epoxy floor coatings and distributes point loads evenly.

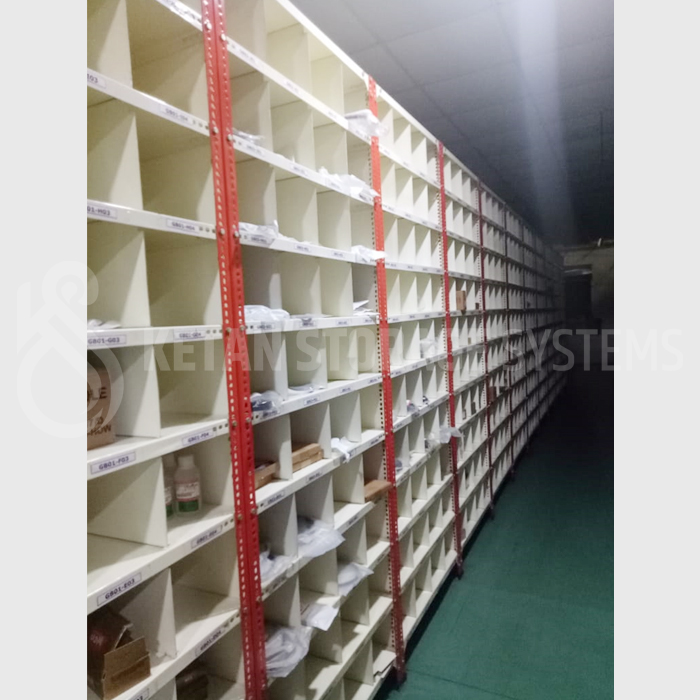

- Partition Dividers & Bin Fronts: Drop-in steel sheet dividers that compartmentalize open shelves into organized bins.
- Prime Cold-Rolled Mild Steel (14, 16 & 18 Gauge Options)
- 80 kg to 200 kg Uniformly Distributed Load (UDL) per Shelf Tier
- Precision CNC Multi-Hole Punched Angles for Toolless Height Adjustments
- Reinforced Triangular Corner Gusset Plates Resisting Lateral Sway
- Welded Longitudinal Bottom Shelf Stiffeners Preventing Center Sag
- Automated 7-Tank Pretreatment & Scratch-Resistant Powder Coat
- Wiremesh Enclosures, Partition Dividers & Floor Shoe Accessories
- ISO 9001:2015 Certified Manufacturing at Virar East, Thane
Industrial Applications Across Core Manufacturing & Logistics Belts
Ketan Storage Systems manufactures, supplies, and installs slotted angle shelving systems directly from its Virar East, Thane facility:
Engineering & Fabrication Workshops
Taloja & Navi Mumbai
Storing nuts, bolts, hardware fasteners, welding accessories, and small hand tools.
Automotive Dealerships & Service Stations
Thane, Pune & Chakan
Categorized bin storage for OEM spare parts, filters, belts, and vehicle maintenance kits.
Pharmaceutical & Chemical Stockrooms
Vapi, Vadodara & Tarapur
Ventilated, dust-resistant sample storage, laboratory consumables, and document records.
Retail, Supermarkets & E-Commerce Hubs
Bhiwandi & Mumbai
Fast-moving packaged goods, apparel sorting, and order fulfillment staging.
Frequently Asked Questions (FAQ)
Detailed engineering clarifications for facility managers, storeroom supervisors, and procurement officers.
Need Custom Slotted Angle Layouts & Direct Factory Quotes?
Connect with Ketan Storage Systems' technical team in Virar East, Thane for custom gauge selection, storeroom shelving space audits, and bulk B2B procurement quotes.
